Çok Modlu Mikroplaka Yıkayıcı Biotek EL406

Stoklu siparişleriniz aynı gün kargoda!

Biotek EL406 Multi-Mode Microplate Washer and Dispenser

Fiyat Sorunuz

Multi-mode plate processing system combining washing, reagent dispensing, biomagnetic separation, and vacuum filtration in a single platform for 96, 384, and 1536-well microplates. Designed for high-throughput ELISA and cell-based assay automation.

  • Compatible with 96, 384, and 1536-well microplates (both low and standard profile)
  • Dispensing range of 3 - 3,000 µL per well in 1 µL increments
  • Programmable wash cycles from 1 - 250
  • Biomagnetic separation and optional vacuum filtration
  • Ultrasonic Advantage™ prevents tube clogging
  • Compatible with BioStack and BioSpa 8 automation systems
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

The EL406 is a versatile microplate processing system that integrates plate washing with three reagent dispensing modes in a compact footprint. Engineered for laboratories performing ELISA automation, magnetic bead washing, cell washing and media exchange, and bulk reagent distribution.

Patented Dual-Action™ manifold technology enables gentle washing of loosely adherent monolayer cell cultures without damage; the Ultrasonic Advantage™ feature minimizes tube clogging prior to dispensing, reducing assay errors. Combined syringe pump and peristaltic pump dispensers provide versatile applications ranging from precise low-volume dispensing to high-volume bulk washing in a single instrument.

Biomagnetic separation and optional vacuum filtration modules enable flexible protocol development for bead-based and cell-based assays. LHC2 software supports multi-protocol creation and management; optional 21 CFR Part 11 compliance and SiLA driver compatibility ensure seamless integration into regulated laboratory environments. Integrates with automation systems including BioStack and BioSpa 8.

Technical Specifications

Microplate formats 96, 384, and 1536-well; low and standard profile; solid bottom and filter bottom (optional)
Software LHC2 Software; optional 21 CFR Part 11 compliance and SiLA driver
Separation Biomagnetic separation, vacuum filtration (optional)
Shaking Programmable up to 60 minutes; slow/medium/fast/variable speeds
Soaking Programmable up to 60 minutes
Ultrasonic Advantage™ Standard on most configurations
Automation compatibility BioStack, BioSpa 8 Automated Incubator, and third-party systems
Dispensing range 3 – 3,000 µL per well in 1-3 µL increments
Wash cycles 1 – 250
Dispensing accuracy ±3%
Dispensing precision <3% CV (model dependent)
Residual volume <2 µL per well
Wash speed 96-well/300µL: 13 sec; 384-well/100µL: 17 sec; 1536-well/10µL: 36 sec
Vacuum filtration range 0 to -380 mmHg (final pressure within 30 sec); filtration duration 5-999 sec
Reagent bottle capacity 4 L or 10 L (optional)

Applications

  • ELISA assay automation
  • Magnetic bead-based assay washing
  • Cell washing and media exchange
  • Bulk reagent dispensing
  • Cell seeding

Frequently Asked Questions

What microplate formats does the EL406 support?
The EL406 is compatible with 96, 384, and 1536-well microplates in both low and standard profile configurations.
Is the EL406 suitable for cell-based assays?
Yes, the patented Dual-Action™ manifold technology gently washes loosely adherent cell monolayers without causing cell damage.
Can it integrate with automation systems?
Yes, the EL406 is compatible with BioStack, BioSpa 8 Automated Incubator, and third-party automation solutions.

İlginizi çekebilir

Otomatik Elisa ve Kemilüminesan Analizörü ChemWell Fusion 4800
Compare
Quick view
Add to wishlist
Read more

Awareness Technology ChemWell Fusion 4800 Automated ELISA Analyzer

Fiyat Sorunuz
Mikroplaka Yıkayıcı Biotek 405 TS
Compare
Quick view
Add to wishlist
Read more

BioTek 405 TS Microplate Washer (ELISA Plate Washer)

Fiyat Sorunuz
Mikroplaka Yıkayıcı Biotek 50 TS
Compare
Quick view
Add to wishlist
Read more

Biotek 50 TS Microplate Washer

Fiyat Sorunuz
Mikroplaka Yıkayıcı Biotek ELx405
Compare
Quick view
Add to wishlist
Read more

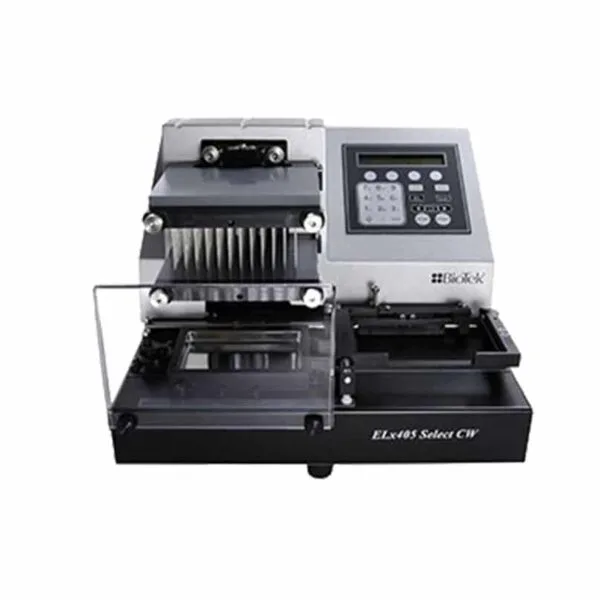

BioTek ELx405 Microplate Washer

Fiyat Sorunuz
Elisa Plate Yıkayıcı Biotek ELx50
Compare
Quick view
Add to wishlist
Read more

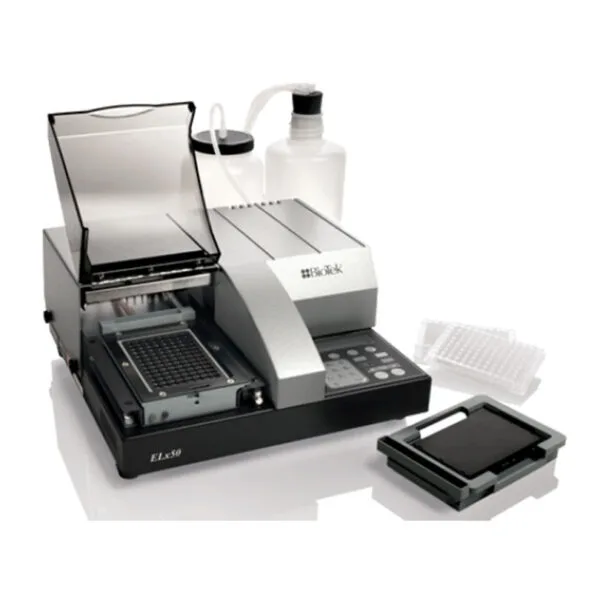

ELISA Plate Washer Biotek ELx50
