Vakum Göstergesi VACUUBRAND VACUU VIEW

Stoklu siparişleriniz aynı gün kargoda!

0.1 mbar-1100 mbar Display Gauge

Fiyat Sorunuz

Precision vacuum gauge for rough vacuum range monitoring with capacitive ceramic diaphragm sensor

  • Maximum sensitivity across the 0.1 mbar to atmospheric pressure range—ideal measurement for all rough vacuum applications
  • Compact design with integrated sensor for convenient laboratory setup
  • Chemically resistant ceramic diaphragm sensor—extremely reliable in harsh laboratory conditions, even with aggressive chemicals
  • Illuminated display
  • Integrated vacuum sensor, ready to use
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

For monitoring your vacuum operations in the rough vacuum range, VACUU·VIEW new vacuum gauges are perfect! Chemically resistant ceramic diaphragm sensor for measurement in the rough vacuum range. VACUU·VIEW is an independent pressure gauge with precise capacitive reading.

Technical Specifications

Vacuum sensor Integrated
Upper measurement limit 1100/825 mbar / torr
Lower measurement limit 0.1 / 0.075 mbar / torr
Measurement principle Ceramic diaphragm (alumina), capacitive, gas, absolute pressure
Measurement accuracy <±1 mbar / hPa / torr / ±1 digit (after calibration, constant temperature)
Temperature coefficient <0.07 mbar / hPa / 0.05 torr / K
Ambient temperature range (operation) 10–40 °C
Ambient temperature range (storage) -10–60 °C
Max. media temperature continuous operation / short-term 40/80 °C
External housing material Robust plastic housing with excellent chemical resistance
Protection rating IP 54
External power supply cable length 2 m
Dimensions (W × D × H) 50 × 62 × 103 mm
Weight 0.19 kg
NRTL certification Canada and USA
ATEX approval II 3 / – G IIC T4 X Internal atmosphere only
Supplied products Integrated vacuum sensor, ready to use, vacuum hose DN 6/10 mm, wall plug power supply, and manual

Applications

  • Rough vacuum range monitoring and control
  • Laboratory vacuum process oversight
  • Chemical processing applications requiring chemical-resistant sensors
  • Industrial vacuum system diagnostics
  • Vacuum pump performance verification

Frequently Asked Questions

What is the measurement range of the VACUU·VIEW gauge?
The gauge measures from 0.1 mbar (0.075 torr) to 1100 mbar (825 torr), covering the rough vacuum range with optimal sensitivity.
Is the sensor integrated into the gauge?
Yes, VACUU·VIEW features an integrated ceramic diaphragm sensor, eliminating the need for external sensor connections.
Can this gauge withstand aggressive chemicals?
Yes, the ceramic diaphragm sensor is chemically resistant and designed to operate reliably in harsh laboratory environments with aggressive chemicals.
What is the measurement accuracy?
The measurement accuracy is <±1 mbar / hPa / torr / ±1 digit after calibration at constant temperature.
What is the operating temperature range?
The ambient operating temperature range is 10–40 °C. The gauge can be stored at temperatures from -10–60 °C.

İlginizi çekebilir

Vakum Göstergesi VACUUBRAND VACUU VIEW EXTENDED
Compare
Quick view
Add to wishlist
Read more

0.001 mbar-1100 mbar Display Vacuum Gauge

Fiyat Sorunuz
Kimyasallara Dayanıklı Diyafram Pompası VACUUBRAND MZ1C
Compare
Quick view
Add to wishlist
Read more

Chemical Diaphragm Pump (0.75 m³/hour pump rate, Ultimate vacuum 12 mbar)

Fiyat Sorunuz

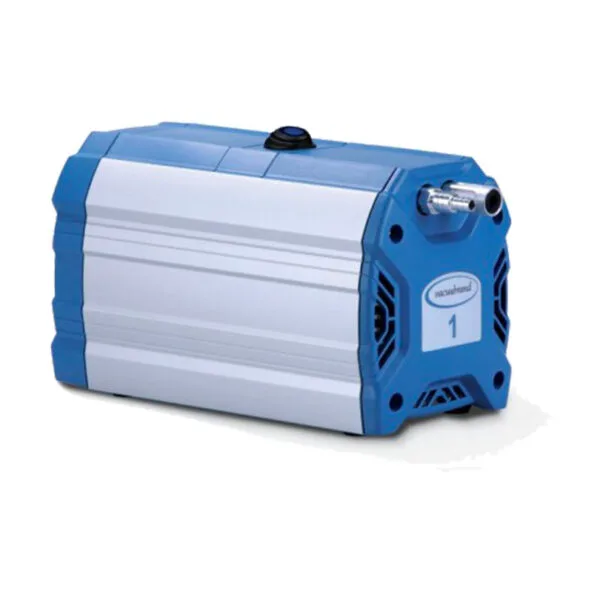

Diyafram Pompası VACUUBRAND ME 1
Compare
Quick view
Add to wishlist
Read more

ME 1 Oil-Free Diaphragm Pump (0.7 m³/h Pumping Speed, 100 mbar Ultimate Vacuum)

Fiyat Sorunuz
Kimyasallara Dayanıklı Diyafram Pompası VACUUBRAND ME1C
Compare
Quick view
Add to wishlist
Read more

ME 1C Diaphragm Pump (0.7 m³/hour Pumping Speed, Ultimate Vacuum 100 mbar)

Fiyat Sorunuz

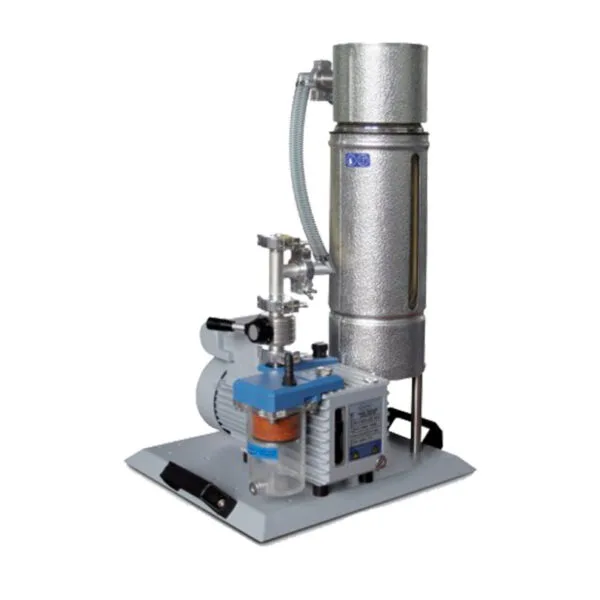

Yağlı Pompa VACUUBRAND RZ2,5
Compare
Quick view
Add to wishlist
Read more

PC 3 / RZ 2.5 Two-Stage Rotary Vane Pump (2.3 m³/hour Pumping Speed, Ultimate Vacuum 4×10⁻³ mbar)

Fiyat Sorunuz

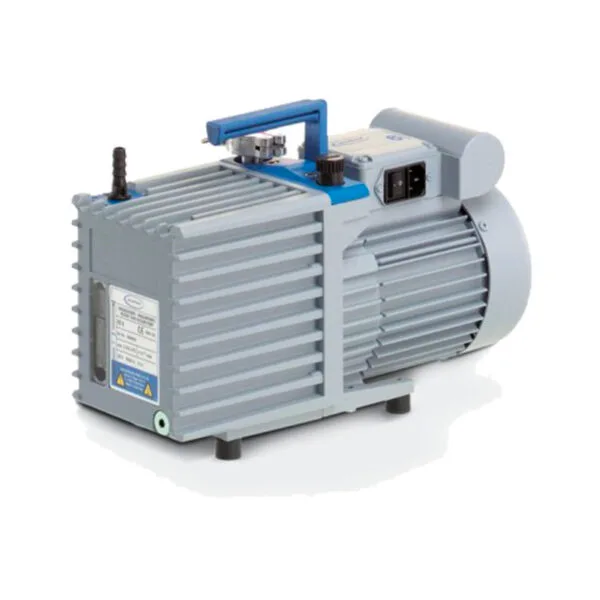

Yağlı Pompa VACUUBRAND RZ6
Compare
Quick view
Add to wishlist
Read more

Rotary Vane Pump RZ 6 – 5.7 m³/h Pumping Speed, Ultimate Vacuum 2×10⁻³ mbar

Fiyat Sorunuz

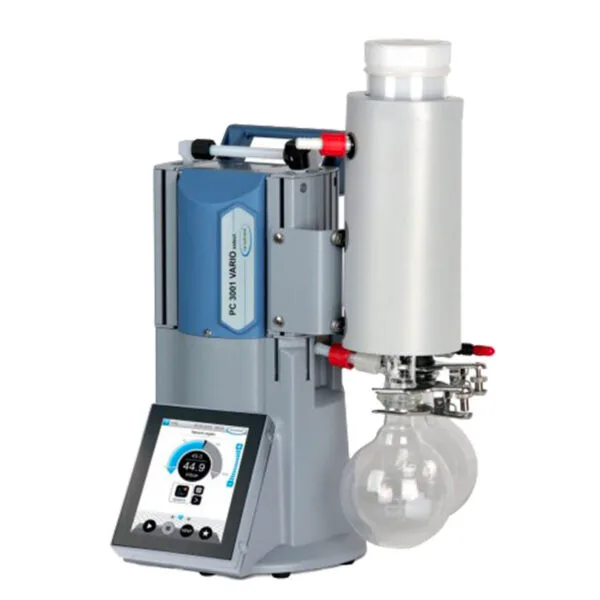

Kimyasallara Dayanıklı Vakum Sistemi VACUUBRAND PC3001VARIO-PRO
