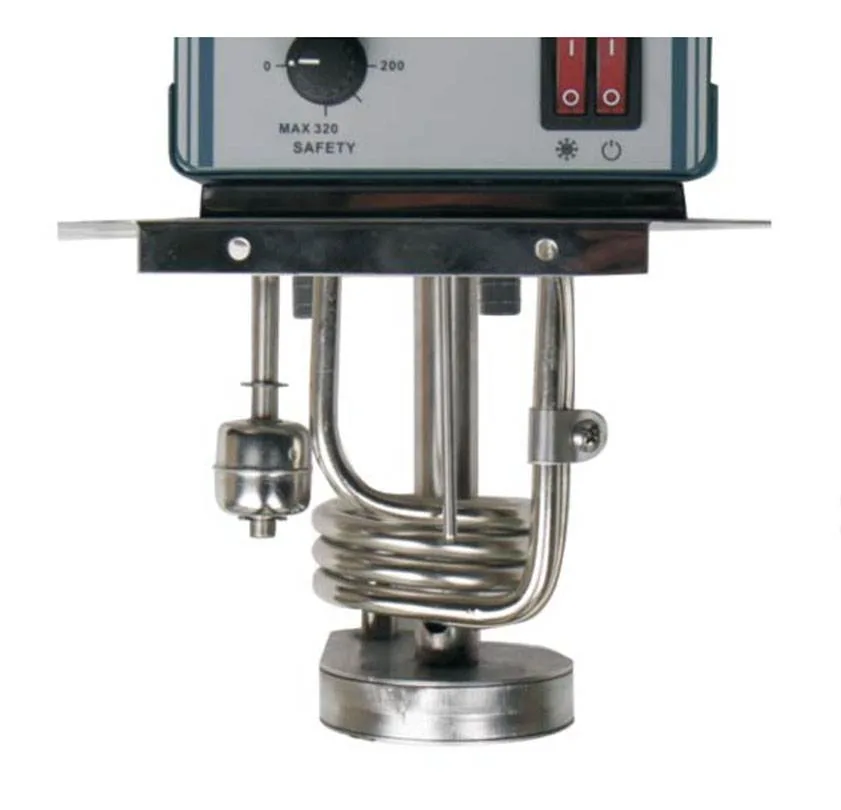

JSR JSRC Series -20°C Cooled Circulating Water Bath - Image 2

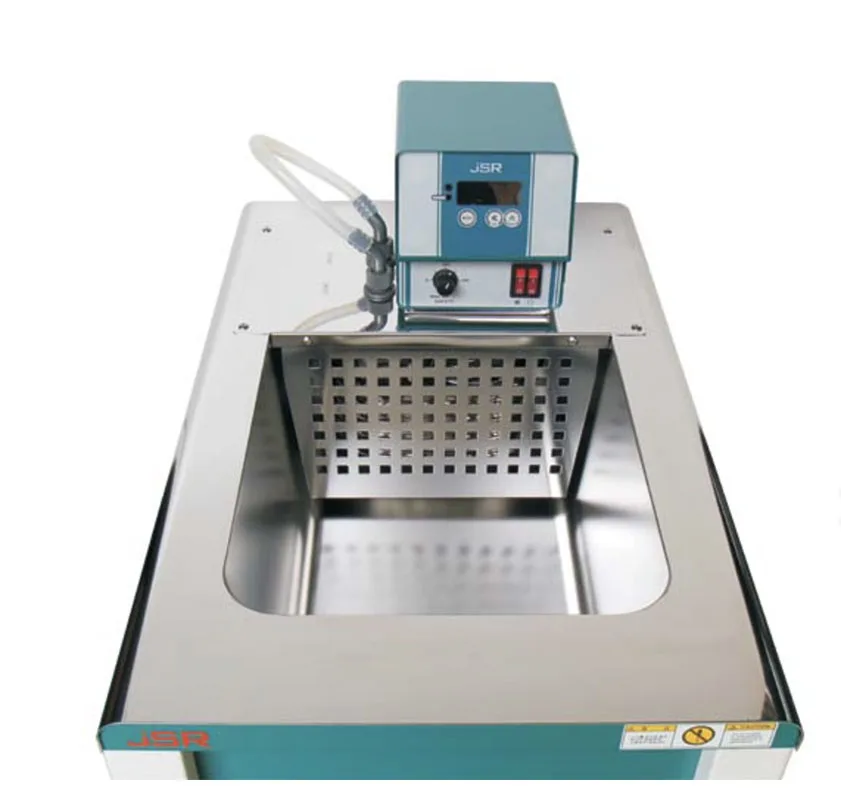

JSR JSRC Series -20°C Cooled Circulating Water Bath - Image 3

Stoklu siparişleriniz aynı gün kargoda!

JSR JSRC Series -20°C Cooled Circulating Water Bath

Fiyat Sorunuz

Microprocessor PID-controlled cooled-heated circulating water bath operating from -20°C to 120°C with 7-30 liter capacity options. Suitable for laboratory temperature testing and viscosity measurements.

Temperature range: -20°C to 120°C
Accuracy ±0.1°C at 37°C, uniformity ±0.3°C
Four capacity options: 7L, 11L, 22L, 30L
Microprocessor PID control with Class A Pt-100 sensor
Stainless steel submersible circulation pump (10 L/min)
Over-temperature, overcurrent, and low water level safety cut-offs

Compare

Add to wishlist

Kargolama ve Teslimat

Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

Garanti 2 yıl

Daha fazla detay

14 Günlük ücretsiz iade

Daha fazla detay

The JSR JSRC series is a cooled-heated circulating water bath designed to operate over a wide temperature range from -20°C to 120°C. It offers models with volume options of 7, 11, 22, and 30 liters to meet diverse laboratory requirements. The bath is applicable for sample temperature stabilization, viscometer connection, or applications requiring external circulation.

The unit features a microprocessor-based PID controller and Class A Pt-100 sensor, delivering ±0.1°C accuracy. With a CFC-free air-cooled compressor and direct immersion heating element, it operates stably across the wide temperature range. The stainless steel submersible pump enables both internal and external circulation modes; connections via ∅9 mm hose fittings allow easy integration with external circuits.

The bath tank is manufactured from electropolished seamless 304 stainless steel, the lid from bright 304 stainless steel, and the chassis from epoxy powder-coated steel. Safety features including over-temperature cut-off, overcurrent protection, and low water level cut-off are standard. Power input: 220V ±10%, 50/60Hz, single phase.

Technical Specifications

Model Options	JSRC-06C (7L), JSRC-13C (11L), JSRC-22C (22L/20L), JSRC-30C (30L)
Temperature Range	-20°C ~ 120°C
Accuracy (37°C)	±0.1°C
Uniformity (37°C)	±0.3°C
Circulation Flow Rate	10 L/min
Heater Capacity	700W (06C) / 800W (13C) / 1.2kW (22C) / 1.6kW (30C)
Cooling System	CFC-Free Air-Cooled Compressor
Sensor	Class A Pt-100 Ω
Control	Microprocessor PID, automatic start/stop timer
Bath Tank Material	Electropolished seamless 304 stainless steel
Lid	Bright 304 stainless steel (included)
Chassis	Epoxy powder-coated steel
Inlet/Outlet Connection	∅9 mm hose barb
Safety Features	Over-temperature, overcurrent, low water level cut-off
Electrical	220V ±10% VAC, 50/60Hz, 1 Phase
Plug Type	CEE 7/7 Schuko or BS 1363
