FP910 Flame Photometer

Fiyat Sorunuz

Microprocessor-controlled single aspiration flame photometer for rapid analysis of Sodium, Potassium, Calcium, Barium, and Lithium

Microprocessor-controlled single aspiration flame photometry
Analysis of Sodium (Na), Potassium (K), Calcium (Ca), Barium (Ba), and Lithium (Li)
7-inch color touchscreen display with graphical data representation
Integrated thermal printer for direct analytical output
USB interface for data collection and software connectivity
Automatic filter selection and wavelength optimization
Up to 12-point calibration capacity
Flame safety sensor with integrated protection
Multi-language interface support
Two model configurations: FP910-4 (4 elements) and FP910-5 (5 elements)

Compare

Add to wishlist

Kargolama ve Teslimat

Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

Garanti 2 yıl

Daha fazla detay

14 Günlük ücretsiz iade

Daha fazla detay

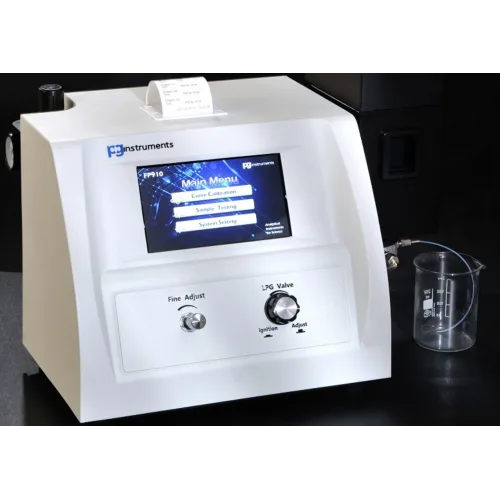

The FP910 Digital Flame Photometer is a microprocessor-controlled single aspiration instrument designed for rapid and reliable determination of Sodium, Potassium, Calcium, Barium, and Lithium. The system features a 7-inch embedded color touchscreen display presenting calibration curves, real-time analytical results, element selection, concentration unit options, and automatic curve coefficient calculation with comprehensive colored graphics. The instrument supports multiple languages (English, Turkish, Polish, Russian, and Portuguese) and includes integrated flame safety sensor protection. Direct printing capability via integrated thermal printer, USB interface for PC data collection software connectivity, automatic filter selection, and calibration capacity of up to 12 points.

Technical Specifications

Detection Limit – Potassium (K)	≤0.004 mmol/L (≤0.156 ppm)
Detection Limit – Sodium (Na)	≤0.008 mmol/L (≤0.184 ppm)
Detection Limit – Lithium (Li)	≤0.015 mmol/L (≤0.104 ppm)
Detection Limit – Calcium (Ca)	≤0.050 mmol/L (≤2.00 ppm)
Detection Limit – Barium (Ba)	≤0.044 mmol/L (≤6.03 ppm)
Linearity Error – Potassium (K)	≤0.005 mmol/L
Linearity Error – Sodium (Na)	≤0.03 mmol/L
Linearity Error – Lithium (Li)	≤0.021 mmol/L
Linearity Error – Calcium (Ca)	≤0.075 mmol/L
Linearity Error – Barium (Ba)	≤0.066 mmol/L
Repeatability	≤2%
Response Time	<8 seconds
Sample Uptake Rate	<6 ml/minute
Printer	Integrated Thermal Printer – Optional
USB Data Output	Available on all FP910 models
Display	7-inch Color LCD Touchscreen
Languages	English, Portuguese, Turkish
Fuel Gases	LPG, Natural Gas, Propane, Butane
Dimensions	400 x 250 x 500 mm
Weight	8 kg
Compressor Type	Single Cylinder Piston Compressor with Air Tank – OIL-FREE
Compressor Power	1/6 HP
Compressor Speed	1450 – 1700 rpm
Air Output	20-23 L/minute
Adjustable Pressure Range	0 – 6 Bar
Air Tank Capacity	3 Liters

Applications

Clinical chemistry and serum electrolyte analysis
Water quality testing and environmental monitoring
Flame emission spectroscopy for metal analysis
Pharmaceutical analysis and quality control
Food and beverage analysis for mineral content
Industrial process control and monitoring
Research and laboratory applications
Multi-element simultaneous determination

Frequently Asked Questions

What elements can the FP910 analyze?

The FP910 can analyze Sodium (Na), Potassium (K), Calcium (Ca), Lithium (Li), and Barium (Ba). Two model configurations are available: FP910-4 for 4-element analysis (Na, K, Ca, Li) and FP910-5 for 5-element analysis (Na, K, Ca, Li, Ba).

What is the maximum number of calibration points?

The FP910 supports up to 12-point calibration capacity for accurate calibration curves and concentration linearity.

Does the instrument include data management software?

Yes, the FP910 Touch Station-Pro data collection software is included. It operates on Windows 10 with a 10-inch touchscreen tablet, allowing data and calibration factor storage, and supports data export in Excel, MS Word, and PDF formats.

What is the response time for analysis?

The response time is less than 8 seconds, enabling rapid analytical throughput.

What fuel gases are compatible?

The FP910 is compatible with LPG, Natural Gas, Propane, and Butane fuel gases.

Is the printer integrated or optional?

An integrated thermal printer is available as an optional feature for direct printing of analytical results.

What connectivity options are available?

The instrument features a USB interface for data collection software connectivity and transfer of analytical data to a connected PC.
