Effortless Sieving for All Tasks

Fiyat Sorunuz

Compact sieve analyzer with optical amplitude adjustment, EASYTWIST stacking system, and AUTOSIEVE evaluation software for routine particle size analysis in the laboratory.

  • Automatic sieve analysis with AUTOSIEVE evaluation software
  • Convertible to vibrating micro mill PULVERISETTE 0
  • Precise digital timer for exact sieving time control
  • Manual amplitude adjustment during operation
  • Real-time amplitude display
  • Ergonomically mounted soft-touch surface with robust design

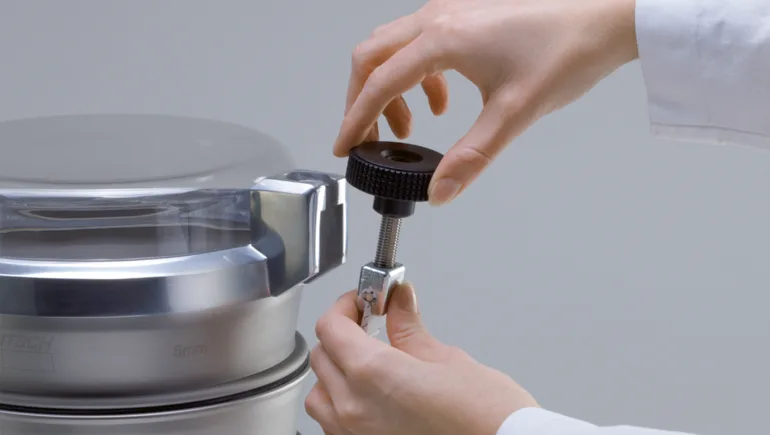

  • EASYTWIST sieve stack with steel-reinforced plastic belt included
  • Optimized power consumption prevents system heating
  • Up to 10 test sieves per cycle - enables simultaneous 5 sieving operations
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

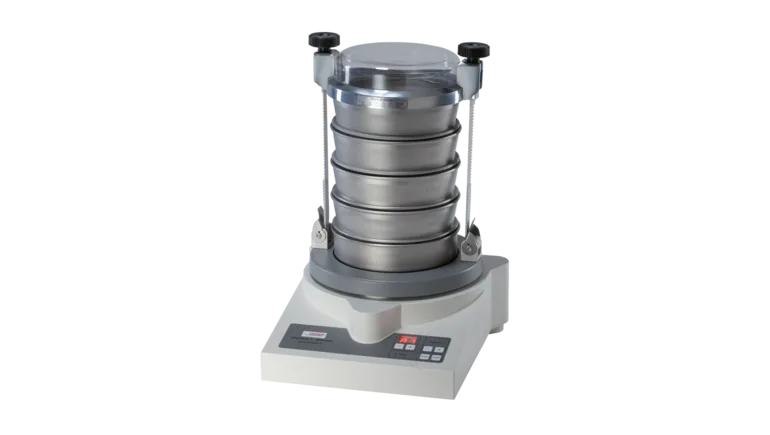

ANALYSETTE 3 SPARTAN is the compact solution for all typical sieving tasks in the laboratory. Equipped with optical amplitude adjustment on the working unit, the integrated FRITSCH EASYTWIST sieve stack tensioning system, and comprehensive FRITSCH AUTOSIEVE evaluation software, it enables fully automated assessment of sieve analysis results. The instrument is suitable for quantitative particle size analysis of all types of solids and suspensions using woven test sieves in both dry and wet sieving modes. It can be converted into a micro mill for fine grinding of dry laboratory samples or solids in suspensions and for homogenization of emulsions or pastes.

Technical Specifications

Analysis Method Sieving
Sieving Action Two-Dimensional
Dry Sieving – Measurement Range 20 µm – 63 mm *
Dry Sieving – Max. Sample Quantity For sieves < 63 mm: up to 2 kg *; For sieves < 100 µm: up to 100 g *
Dry Sieving – Sieving Time Approx. 3-20 min *
Wet Sieving – Measurement Range 20 µm – 10 mm
Wet Sieving – Max. Sample Quantity 20-100 g *
Wet Sieving – Sieving Time Approx. 3-10 min *
Sieve Diameter 100 mm, 200 mm, or 8"
Max. Sieve Count per Stack 10 (50 mm height); 16 (25 mm height)
Max. Sieve Stack Weight 3 kg
Max. Sieve Height 550 mm
Amplitude 0.5 – 3 mm
Amplitude Control Manual
Automatic Sieve Analysis with AUTOSIEVE Software Yes
Convertible to PULVERISETTE 0 Vibrating Micro Mill Yes
Electrical Specifications 100-240 V / 1 ~ 50-60 Hz, 50 W
Weight 21 kg
Dimensions (W x D x H) Benchtop unit 37 x 40 x 20 cm

Applications

  • Quantitative particle size distribution analysis of solids and suspensions
  • Routine quality control sieving in pharmaceutical applications
  • Minerals and aggregates particle classification
  • Powder characterization and grading
  • Wet sieving for fine particle analysis
  • Fine grinding and sample preparation with micro mill conversion

Frequently Asked Questions

What is the measurement range for dry sieving?
The measurement range for dry sieving is 20 µm to 63 mm using appropriate test sieves.
Can ANALYSETTE 3 SPARTAN perform wet sieving?
Yes, the instrument is fully capable of wet sieving with a measurement range of 20 µm to 10 mm.
What is the maximum sample quantity?
For dry sieving with sieves smaller than 63 mm, up to 2 kg can be processed. For finer sieves (< 100 µm), the maximum is 100 g. For wet sieving, the range is 20-100 g.
What is the AUTOSIEVE software?
AUTOSIEVE is comprehensive FRITSCH evaluation software that enables fully automated assessment and data evaluation of sieve analysis results, streamlining the analytical workflow.
How many sieves can be used simultaneously?
Up to 10 test sieves can be used per operating cycle, allowing up to 5 sieving operations to run simultaneously.
Can the amplitude be adjusted during sieving?
Yes, the amplitude can be manually adjusted during operation with real-time optical display, ranging from 0.5 to 3 mm.
Is the instrument convertible to a grinding mill?
Yes, ANALYSETTE 3 SPARTAN can be converted into a PULVERISETTE 0 vibrating micro mill for grinding and homogenization tasks.
