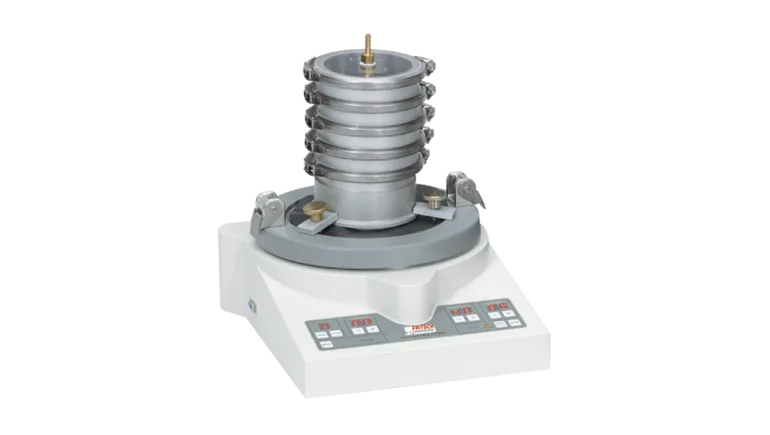

ANALYSETTE 3 PRO - Automatic Controlled Precision Sieving Shaker - Image 2

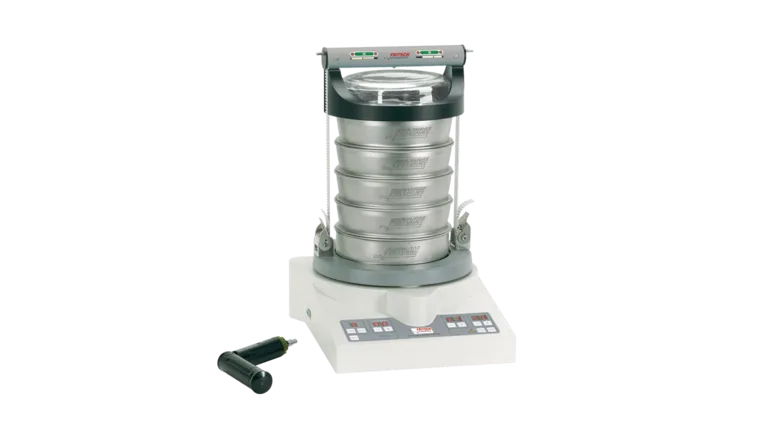

ANALYSETTE 3 PRO - Automatic Controlled Precision Sieving Shaker - Image 3

Stoklu siparişleriniz aynı gün kargoda!

ANALYSETTE 3 PRO – Automatic Controlled Precision Sieving Shaker

Fiyat Sorunuz

High-performance electromagnetic vibrating sieve shaker for rapid quantitative particle size distribution analysis of up to 2 kg sample amounts across 5 μm to 63 mm measurement ranges

Microprocessor-controlled with complete digital function display
RS232 interface enables full operational control with AUTOSIEVE software for online process monitoring
AMPCONTROL for guaranteed constant amplitude settings ensuring reproducible sieving per DIN 19683
Program storage capacity for up to 10 sieving protocols
Interval mode reduces sieving time for low-density bulk materials
Micro and micro-interval modes for precision sieving of fine materials (5-100 μm) with minimal sample quantities (0.05-0.5 g)
Energy-saving mode with automatic standby activation
Integrated FRITSCH EASYTWIST sieve stacking system without stringing
Intelligent wet sieving capability with 2 rotating nozzles and sealed cover
Modular system design for versatile application options
Convertible to PULVERISETTE 0 oscillating micro mill
Optimized power consumption prevents system heat generation
Ergonomic soft-touch control with digital parameter display

Compare

Add to wishlist

Kargolama ve Teslimat

Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

Garanti 2 yıl

Daha fazla detay

14 Günlük ücretsiz iade

Daha fazla detay

The ANALYSETTE 3 PRO is a high-performance vibrating sieve shaker engineered for rapid quantitative particle size distribution determination in the laboratory. As an electromagnetically-driven sieving system, it propels sieve stacks through regulated vertical oscillations, providing an ideal solution for sieving sample amounts up to 2 kg and measurement ranges from 5 μm to 63 mm. The PRO model is exceptionally suited for rapid quality control of incoming and outgoing products, delivering user-friendly operation with low-noise performance, robust construction, and extended service life. Compatible with woven test meshes and micro-precision sieving for quantitative particle size analysis of all solid and suspension types via dry or wet sieving. Features automatic amplitude control, program selection, and calibration capability enabling use as a validated test apparatus per ISO 9001 requirements.

Technical Specifications

Analysis Method	Sieving
Sieving Action	Two-dimensional
Wet Sieving – Measurement Range	20 μm – 10 mm
Micro Precision Sieving – Measurement Range	5 μm – 100 μm
Sieve Diameters	100 mm, 200 mm or 8"
Max. Number of Sieves per Stack	10 (50 mm height), 16 (25 mm height)
Max. Sieve Stack Weight	3 kg
Max. Sieve Height	550 mm
Amplitude	0.1 – 3 mm
Amplitude Control	Automatic
Automatic Sieve Analysis with AUTOSIEVE Evaluation Software	Yes
Test Apparatus Calibration per ISO 9001	Yes
Interface	Yes
Interval Mode	Yes
Memory for 10 Parameter Combinations	Yes
Convertible to PULVERISETTE 0 Oscillating Micro Mill	Yes
Electrical Details	100-240 V / 1 ~ 50-60 Hz, 50 W
Workplace Emission Sound Pressure Level per DIN EN ISO 3746 (depending on material and apparatus configuration)	Approx. L pAd = 63 dB
Weight	21 kg
Dimensions (W x D x H)	Benchtop apparatus 37 x 40 x 20 cm

Applications

Particle size distribution analysis for pharmaceutical powders
Quality control of mineral and aggregate samples
Cement and construction material particle classification
Food and beverage powder analysis
Chemical and pigment particle size determination
Environmental and soil sample sieving
Incoming goods inspection and process validation
Micro-scale precision particle analysis with minimal sample volumes
Wet sieving applications for suspension analysis
GLP/GMP compliant laboratory testing and validation

Frequently Asked Questions

What is the principle of operation for the ANALYSETTE 3 PRO?

The ANALYSETTE 3 PRO operates as a classic electromagnetic-driven oscillating sieve system. The electromagnetic actuator induces vertical oscillation of the sieve stack. The material to be sieved is periodically propelled upward from the sieves and passes through the attached test mesh during downward fall, enabling efficient particle separation.

What sample sizes can be processed with this apparatus?

For dry sieving with sieves smaller than 63 mm: up to 2 kg. For sieves smaller than 100 μm: up to 100 g. For micro precision sieving: 0.05 – 0.5 g. Wet sieving typically accommodates 20-100 g samples.

Is the ANALYSETTE 3 PRO suitable for GLP/GMP compliance?

Yes. The apparatus features ISO 9001-compliant test equipment calibration capabilities, automatic amplitude control (AMPCONTROL), and AUTOSIEVE evaluation software for validated analytical documentation and traceability.

Can wet sieving be performed with this apparatus?

Yes. The PRO model includes intelligent wet sieving capability with 2 rotating nozzles and a sealed cover, enabling quantitative particle size analysis of suspensions across the 20 μm – 10 mm range.

What is the amplitude range and how is it controlled?

The amplitude range is 0.1 – 3 mm. Control is achieved through automatic AMPCONTROL, which guarantees constant amplitude settings and ensures reproducible sieving results per DIN 19683.

Does the ANALYSETTE 3 PRO have software capabilities?

Yes. The apparatus features an RS232 interface enabling full operational control and integration with AUTOSIEVE evaluation software, which allows online monitoring and comparison of setpoint versus actual amplitude during sieving processes.

Can the apparatus be converted to a milling function?

Yes. The ANALYSETTE 3 PRO is convertible to the PULVERISETTE 0 oscillating micro mill, enabling additional sample preparation functionality.

What is the typical sieving duration?

For dry sieving: approximately 3-20 minutes. For wet sieving and micro precision sieving: approximately 30-60 minutes. Actual duration depends on material properties and configuration.

Is energy consumption a concern?

No. The apparatus features optimized power consumption (50 W) that prevents system heat generation and includes energy-saving mode with automatic standby activation.

What sieve diameters are compatible?

The ANALYSETTE 3 PRO accommodates sieve diameters of 100 mm, 200 mm, or 8 inches with a maximum stack configuration supporting up to 16 sieves (25 mm height) or 10 sieves (50 mm height).
