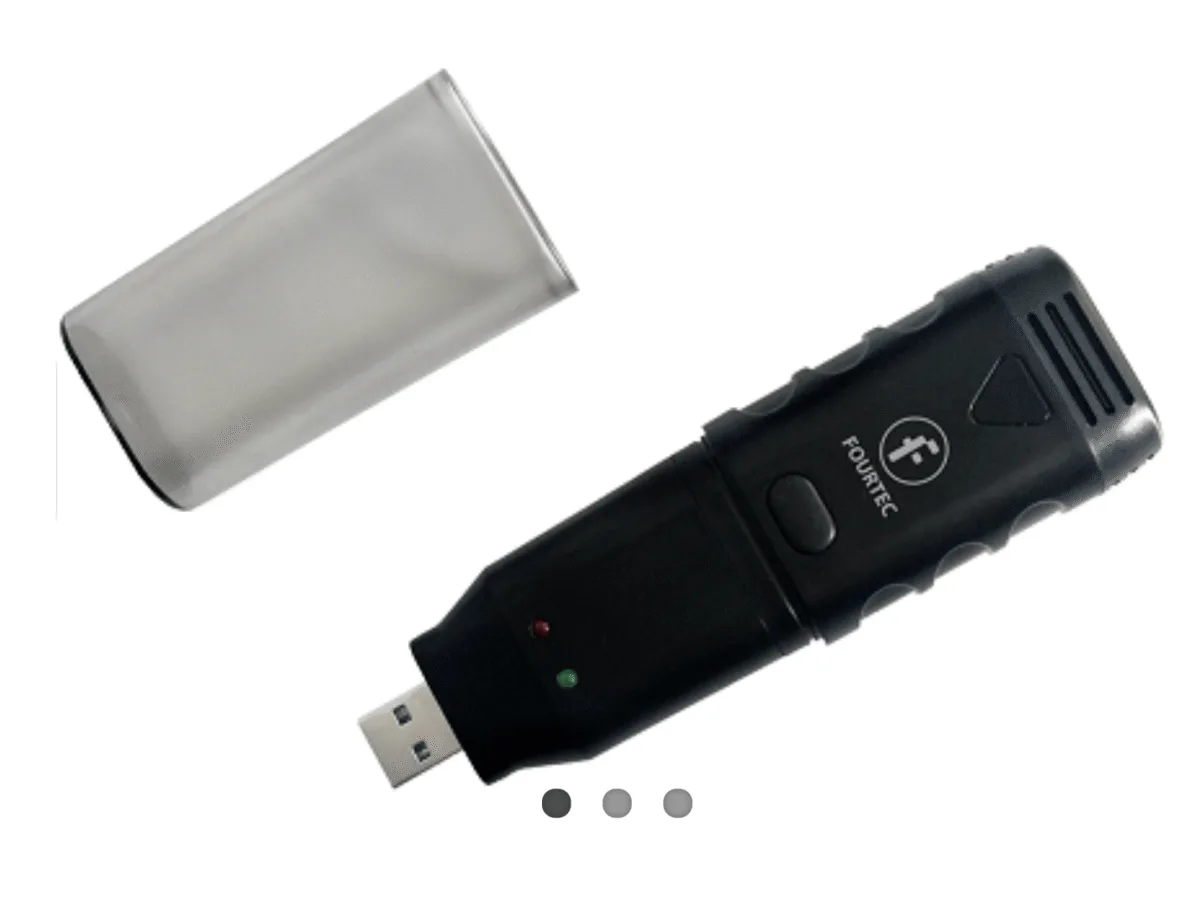

-80°C Temperature Data Logger Fourtec Instruments Dry Ice PDF - Image 2
'-80C Sıcaklık Datalogger Fourtec Instruments Dry Ice PDF
-80°C Temperature Data Logger Fourtec Instruments Dry Ice PDF - Image 2

Stoklu siparişleriniz aynı gün kargoda!

-80°C Temperature Data Logger Fourtec Instruments Dry Ice PDF

Fiyat Sorunuz

Wireless USB data logger for pharmaceutical temperature monitoring, cold chain management, vaccine storage, laboratory applications, and cold room facilities with extended range capabilities

  • Generate PDF compliance reports with event-based monitoring data
  • Integrated activation button for manual logging initiation
  • Direct USB interface for seamless PC data transfer and configuration
  • 17,280 sample memory capacity for extended transportation monitoring
  • Dual-function LED indicators: Green (active sampling), Red (alarm status)
  • Extended operating temperature range from -80°C to 70°C
  • User-replaceable battery system for long-term deployment
  • IP67-rated enclosure for water and dust resistance
  • Programmable alarm thresholds, sampling intervals, and timezone settings
  • PidifiX configuration software for Windows environments
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

The -80°C Temperature Data Logger is a robust wireless USB recording device designed for critical temperature monitoring applications in pharmaceutical storage, cold chain logistics, refrigerated transport, vaccine preservation, laboratory environments, food processing facilities, and cold storage rooms. Equipped with PT1000 sensor technology and advanced data management features, this device ensures reliable compliance monitoring across extreme temperature ranges from -80°C to 70°C.

Technical Specifications

Sensor Type PT1000
Temperature Range -80°C to 70°C
Resolution 0.1°C
Data Storage Capacity 17,280 samples
Sampling Rate Every 10 minutes (factory preset)
Response Time (T90) 15 minutes
Power Supply 2/3AA Lithium battery
Battery Life 120 days (-80°C, 15-minute intervals)
Operating Temperature -80°C to 70°C
Storage Temperature -80°C to 70°C
LED Indicators Green (sampling active), Red (sampling/alarm)
Alarm Type Single threshold and accumulation-based
Activation Modes Immediate or time-delayed start
Connection Mode Auto shutdown upon PC connection
Report Format PDF
Dimensions 120 mm × 37 mm × 23 mm
Weight 67 g
Configuration Software PidifiX (Windows Vista, 7, 8, 10)
Standards Compliance CE, EN12830, RoHS, REACH

Applications

  • Pharmaceutical cold chain temperature verification and documentation
  • Vaccine storage facility monitoring and regulatory compliance
  • Laboratory refrigerator and freezer performance validation
  • Medical specimen and reagent transportation tracking
  • Food processing and cold storage facility monitoring
  • Long-distance cold logistics and shipment verification
  • Clinical trial sample preservation documentation
  • Blood bank and cryogenic storage surveillance

Frequently Asked Questions

What is the minimum temperature this device can monitor?
The device operates across a range from -80°C to 70°C, making it suitable for ultra-low freezer monitoring including dry ice applications.
How often does the device record temperature readings?
The preset sampling rate is every 10 minutes, though this can be customized through the PidifiX configuration software.
How long will the battery last in a -80°C environment?
At -80°C with 15-minute sampling intervals, the 2/3AA lithium battery provides approximately 120 days of operation.
What data export format is supported?
The device generates PDF compliance reports with integrated monitoring event data for regulatory documentation.
Is this device waterproof?
Yes, the device carries an IP67 rating, providing protection against submersion and dust ingress during transportation and storage.
Can alarm thresholds be customized?
Yes, the device supports user-defined alarm levels, sampling rates, and timezone settings for specific monitoring requirements.
What operating system is required for configuration?
The PidifiX software runs on Windows Vista, Windows 7, Windows 8, and Windows 10 systems.
