Ultra Analytical Balance 0.0000001g Radwag UYA 2.4Y

Fiyat Sorunuz

Next-generation ultra micro balance for precise mass determination with ±0.1 µg readability and automatic internal calibration

Ultra-high readability of 0.1 µg (micrograms)
Maximum capacity of 2.1 g with exceptional precision
Dual-system architecture: separate indicator and mechanical balance
Internal automatic calibration system
Electrostatic protection via glass and steel construction
5.7-inch color touchscreen display with advanced interface
OIML Class I classification
Stabilization time: 10-20 seconds
Temperature and time drift compensation

Compare

Add to wishlist

Kargolama ve Teslimat

Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

Garanti 2 yıl

Daha fazla detay

14 Günlük ücretsiz iade

Daha fazla detay

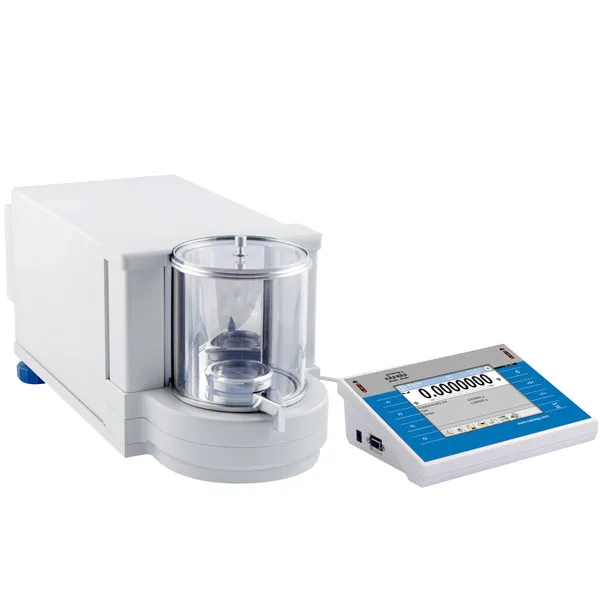

The new generation ultra micro balance UYA 4Y is engineered to meet the highest requirements for mass determination. An integrated automatic internal adjustment and calibration system ensures excellent measurement reliability and precision. The instrument comprises two main assemblies: a separate indicator unit and an independent precision mechanical weighing system. This dual-component design eliminates heat effects from the electronic components on mechanical elements and provides protection against shock and vibration from users. All components are constructed from glass and steel to eliminate the effects of electrostatic discharge.

Technical Specifications

Maximum Capacity [Max]	2.1 g
Readability [d]	0.1 µg
Tare Range	-2.1 g
Repeatability (at 5% Max)	0.25 µg
Repeatability (Max)	0.4 µg
Linearity	1.5 ± µg
Eccentric Load Deviation	1.5 µg
Sensitivity Offset	1.5 × 10⁻⁶ × Rt
Sensitivity Temperature Drift	1 × 10⁻⁶ / °C × R
Sensitivity Time Drift	1 × 10⁻⁶ / Year × R
Minimum Weight (U = 1%, k = 2)	0.05 mg
Minimum Weight (USP)	0.5 mg
Stabilization Time	10 – 20 s
Calibration	Internal (automatic)
OIML Class	I
Display	5.7 inch resistive color touchscreen
Power Supply	100 ÷ 240 V AC 50/60 Hz
Maximum Power Consumption	700 mA (wireless terminal – 1 A)
Operating Temperature	+10 ÷ +40 °C
Operating Temperature Change Rate	± 0.3 °C / 1 hour (± 1 °C / 8 hours)
Atmospheric Humidity	40 ÷ 80%
Atmospheric Humidity Change Rate	± 1% / hour (± 4% / 8 hours)
Weighing Chamber Dimensions	Ø90 × 90 mm
Pan Diameter	ø16 mm
Packaging Dimensions	660 × 660 × 455 mm
Net Weight	9.1 kg

Applications

Pharmaceutical and chemical substance analysis
Laboratory mass determination and weighing
Precious metal and gemstone evaluation
Quality control and verification testing
Research and development applications
Micro-sample analysis
Compliance with USP and OIML standards
Calibration and metrology services

Frequently Asked Questions

What makes this balance suitable for ultra-precise measurements?

The UYA 2.4Y features a dual-component design with a separate indicator and independent mechanical weighing system. This architecture minimizes heat effects on sensitive mechanical elements and provides excellent vibration isolation, enabling readability down to 0.1 µg.

How does the automatic calibration system work?

The integrated automatic internal adjustment and calibration system continuously monitors and adjusts for environmental variations, ensuring consistent measurement accuracy and eliminating the need for manual calibration procedures.

What protection does the glass and steel construction provide?

Glass and steel materials are used to eliminate electrostatic discharge effects on measurements, ensuring that external electrical fields do not interfere with the weighing accuracy.

What is the stabilization time for measurements?

The balance requires 10 to 20 seconds to stabilize and provide reliable measurement results after a sample is placed on the pan.

Is this balance suitable for pharmaceutical applications?

Yes, the UYA 2.4Y meets USP (United States Pharmacopeia) minimum weight requirements (0.5 mg) and is OIML Class I certified, making it suitable for pharmaceutical and regulatory-compliant applications.

What are the environmental operating conditions?

The balance operates optimally at temperatures between +10 and +40 °C with atmospheric humidity between 40 and 80%. Temperature stability should not exceed ±0.3 °C per hour for best results.
