MS-H-ProA Hot Plate Magnetic Stirrer with Temperature Control

Fiyat Sorunuz

Professional hot plate stirrer with max. 340°C, 1500 rpm, PID control, and RS232 connectivity

  • Maximum operating temperature: 340°C with speed control up to 1500 rpm
  • Flat aluminum alloy work plate ensures rapid heating performance and exceptional compatibility with multiple heating vessels and blocks
  • High-resolution LCD display shows real-time temperature and stirring speed readouts
  • PID temperature controller guarantees precise and stable heating control
  • External temperature sensor input (PT 1000) with ±0.2°C accuracy for enhanced temperature monitoring
  • Brushless DC motor delivers superior speed control capability
  • Three heating modes: rapid heating, standard heating, and constant heating options
  • RS232 interface enables remote control, computer operation, and data transmission
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

The MS-H-ProA is a precision laboratory hot plate magnetic stirrer featuring advanced temperature control and stirring capabilities. Equipped with a flat aluminum alloy work plate for rapid heating and broad compatibility with various heating vessels and aluminum blocks. The high-resolution LCD display simultaneously monitors temperature and stirring speed in real-time. Integrated PID temperature controller ensures precise, stable heating processes. External temperature control is available via PT 1000 sensor (±0.2°C accuracy). Brushless DC motor delivers superior speed regulation. Three selectable heating modes—rapid heating, standard heating, and constant heating—accommodate diverse application requirements. Remote operation and data transmission are enabled through RS232 interface connectivity.

Technical Specifications

Model MS-H-ProA
Work Plate Diameter φ135 mm (5 inches)
Work Plate Material Aluminum
Motor Type Brushless DC Motor
Heating Temperature Range Room temperature to 340°C, increment 1°C
Temperature Display Accuracy ± 0.1°C
Heating Power 600 W
Stirring Speed Range 100–1500 rpm, resolution ± 1 rpm
Maximum Stirring Volume (Water) 20 L
Speed Indicator LCD Display
Temperature Indicator LCD Display
Motor Rated Input 18 h
Motor Rated Output 10 W
Maximum Magnetic Stir Bar Length 80 mm
Temperature Control Accuracy ± 1°C (<100°C); ± 1% (>100°C)
External Temperature Sensor PT1000 (Accuracy ± 0.2°C)
Overheat Protection 420°C
"Hot Surface" Warning Threshold 50°C
Data Interface RS232
Protection Class IP21
Operating Voltage 100–120 / 200–240 V, 50 / 60 Hz
Power Consumption 650 W
Dimensions (W × D × H) 280 × 160 × 100 mm
Weight 2.8 kg

Applications

  • Chemical synthesis and reactions requiring precise temperature control
  • Sample heating and stirring in analytical chemistry
  • Pharmaceutical and biochemical research applications
  • Laboratory distillations and evaporations
  • Heating and mixing operations in material science research
  • Quality control and process development in manufacturing
  • Educational demonstrations in chemistry and material science

Frequently Asked Questions

What is the maximum temperature this hot plate stirrer can achieve?
The MS-H-ProA can reach a maximum operating temperature of 340°C with precise 1°C increments starting from room temperature.
How accurate is the temperature control?
Temperature control accuracy is ± 1°C for temperatures below 100°C and ± 1% for temperatures above 100°C. The temperature sensor displays with ±0.1°C accuracy.
Can I use external temperature monitoring?
Yes, the unit supports external temperature sensor input via PT 1000 with ±0.2°C accuracy for enhanced temperature monitoring and control.
What stirring speeds are available?
The brushless DC motor provides stirring speeds from 100 to 1500 rpm with ±1 rpm resolution control.
What is the maximum volume that can be stirred?
The maximum stirring capacity is 20 liters of water-based solutions.
What are the three heating modes?
The three available heating modes are: rapid heating for quick temperature rise, standard heating for routine applications, and constant heating for maintaining stable temperatures.
Can this equipment be controlled remotely?
Yes, the RS232 interface enables remote operation, computer control, and data transmission for integration into automated laboratory systems.
What protection features does it have?
The unit includes overheat protection at 420°C and a hot surface warning at 50°C. It meets IP21 protection class standards.

İlginizi çekebilir

10lu Manyetik Karıştırıcı DLAB MS-S10-M
Compare
Quick view
Add to wishlist
Read more

10-Position Magnetic Stirrer DLAB MS-S10-M

Fiyat Sorunuz
16lı Manyetik Karıştırıcı DLAB MS-S16-M
Compare
Quick view
Add to wishlist
Read more

16-Position Magnetic Stirrer DLAB MS-S16-M

Fiyat Sorunuz
Manyetik Karıştırıcı DLAB MS-S
Compare
Quick view
Add to wishlist
Read more

Benchtop Laboratory Magnetic Stirrer MS-S

Fiyat Sorunuz
Isıtıcılı Manyetik Karıştırıcı IKA C-MAG HS 7
Compare
Quick view
Add to wishlist
Read more

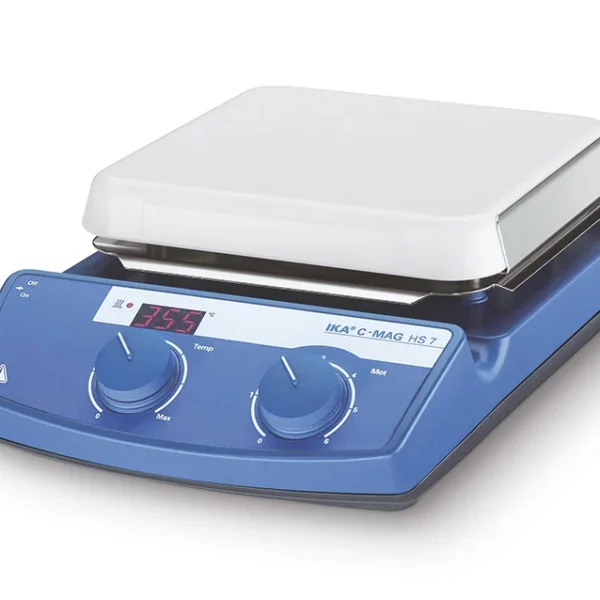

IKA C-MAG HS 7 Heated Magnetic Stirrer

Fiyat Sorunuz
Isıtıcılı Manyetik Karıştırıcı & Hot plate DLAB MS-LH-PROT
Compare
Quick view
Add to wishlist
Read more

MS-H-Pro T Heated Magnetic Stirrer with Digital Temperature Control

Fiyat Sorunuz
Isıtıcılı Manyetik Karıştırıcı & Hot plate DLAB MS-H280-Pro
Compare
Quick view
Add to wishlist
Read more

MS-H280-Pro Heating Magnetic Stirrer – Laboratory Hot Plate with Ceramic Coating

Fiyat Sorunuz
Isıtıcılı Manyetik Karıştırıcı OHAUS Guardian® 3000
Compare
Quick view
Add to wishlist
Read more

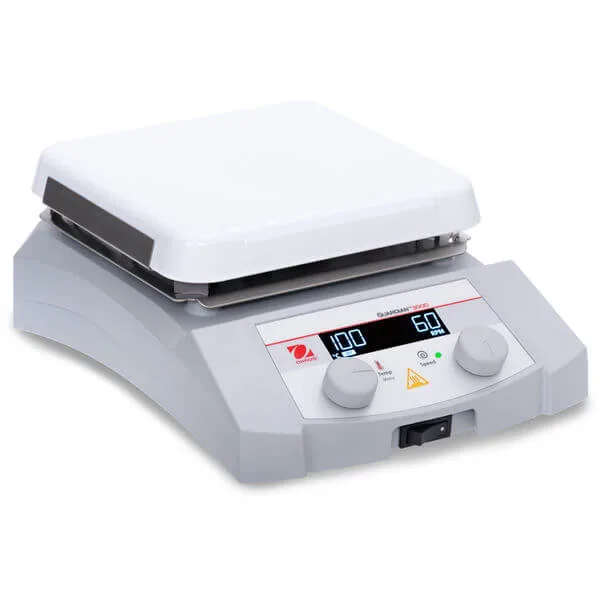

OHAUS Guardian® 3000 Heated Magnetic Stirrer
