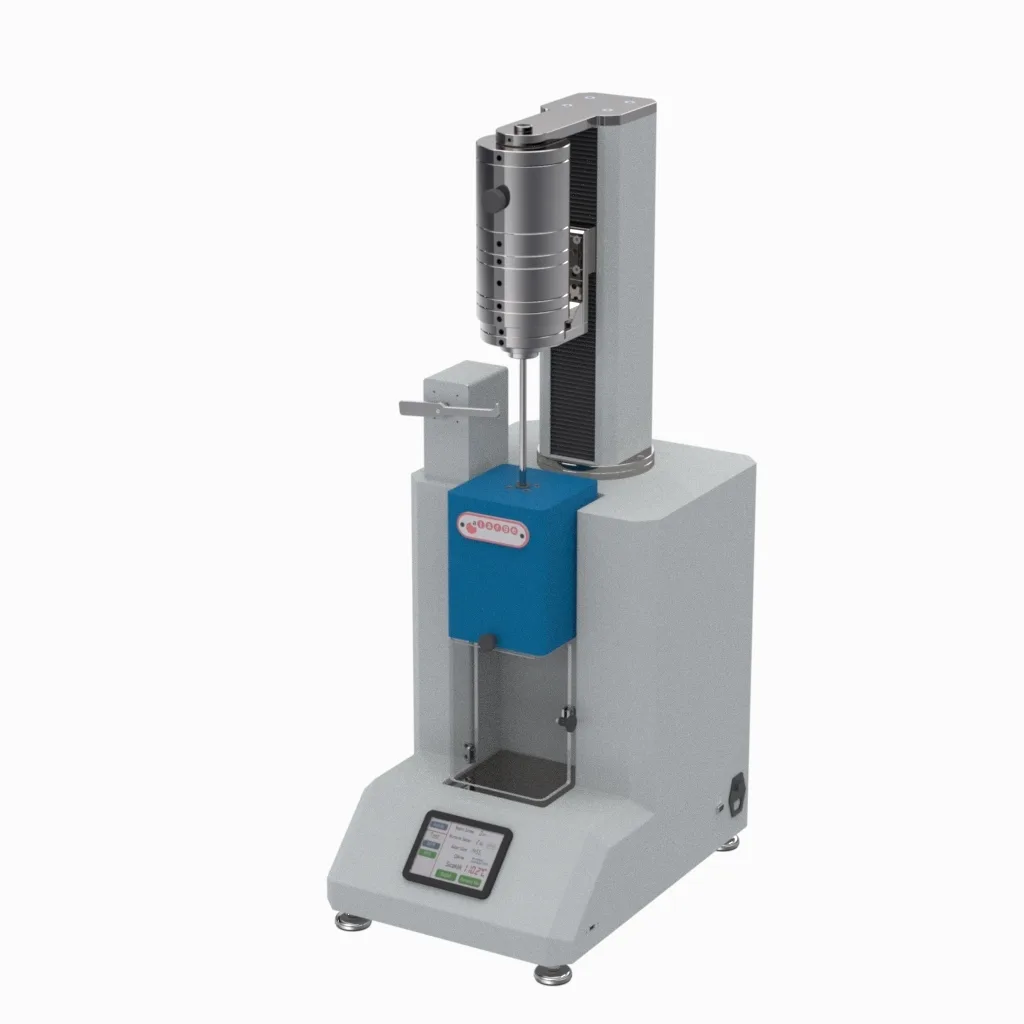

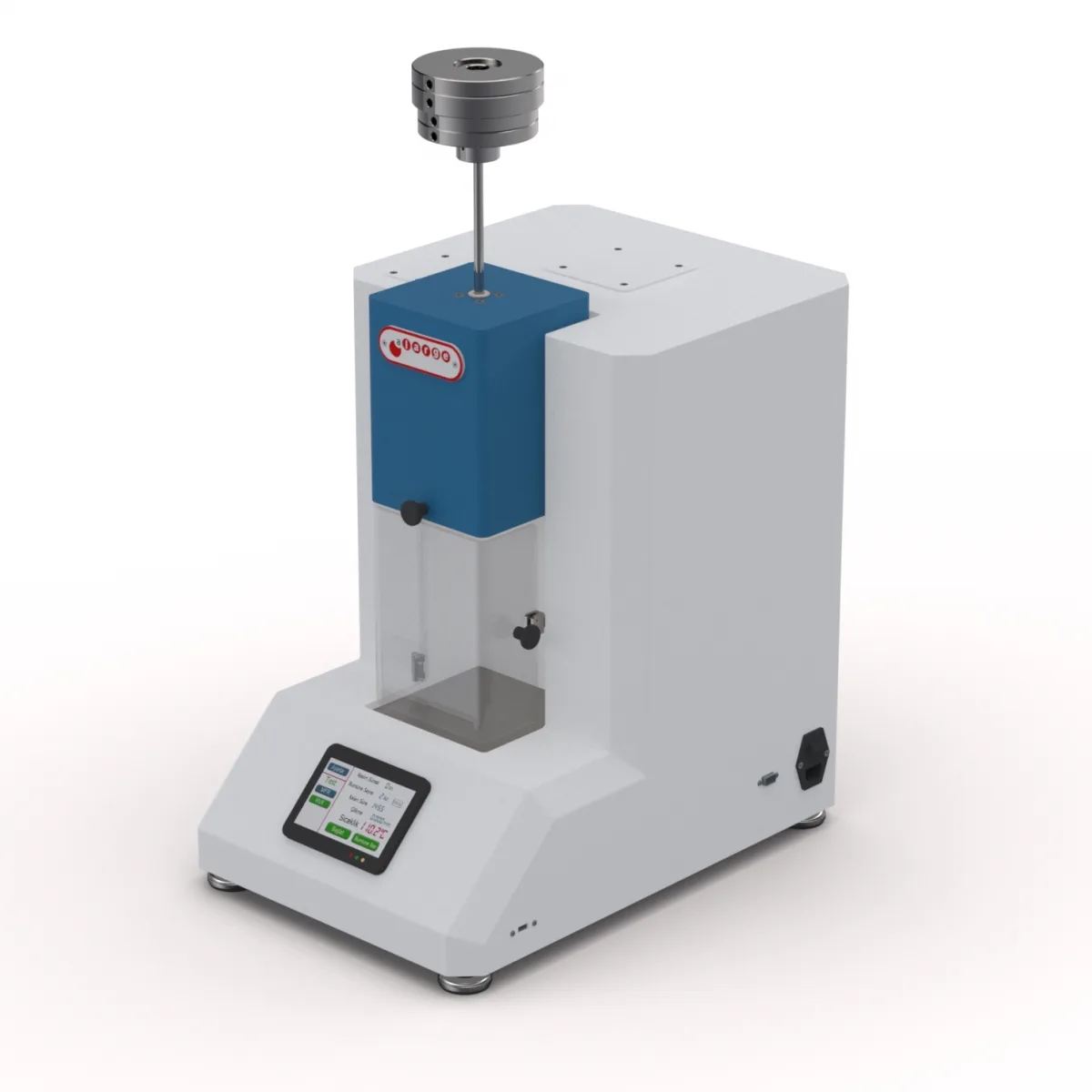

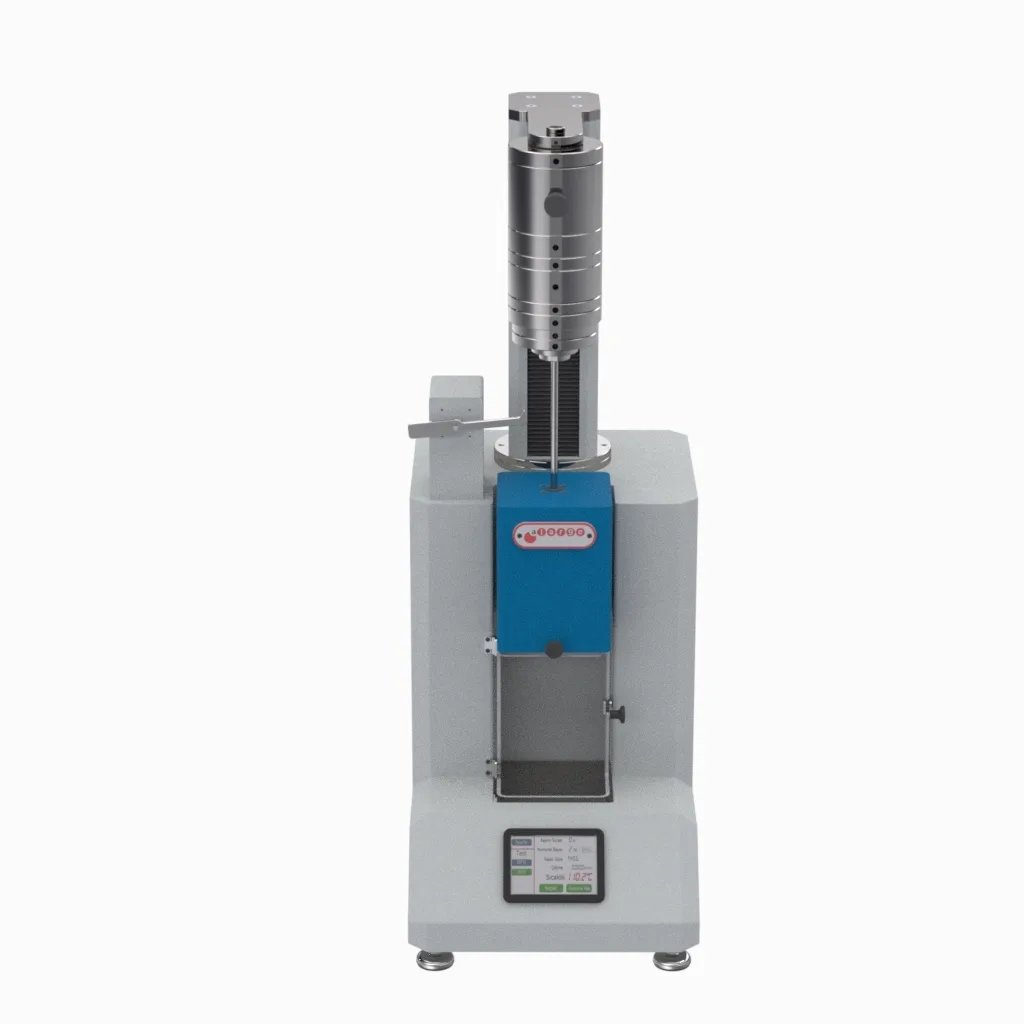

MFI Device (Melt Flow Index) – Melt Flow Tester

Fiyat Sorunuz

PLC-controlled Melt Flow Index tester for thermoplastic materials compliant with ISO 1133 and ASTM D1238 standards

This product is currently out of stock and unavailable.

  • Compliant with ISO 1133, ASTM D1238, GB 3682, ASTM D3364, DIN 53735, UNI 640, JJGB 78-94
  • Automatic specimen cutting with digital encoder
  • 5-inch TFT touchscreen interface for intuitive operation
  • Temperature range: ambient to 400°C with ±0.2°C accuracy
  • Measurement range: 0 to 30 mm with ±0.05 mm precision
  • Built-in thermal printer for instant result documentation
  • PLC-controlled automation for consistent testing protocols
  • USB data export capability to PC workstations
  • Specimen measurement precision: ±10%
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

Professional MFI (Melt Flow Index) test apparatus designed for measuring melt flow rate (MFR) and melt volume rate (MVR) of thermoplastic materials in accordance with ISO 1133 and ASTM D1238 international standards. This laboratory-grade instrument is capable of testing PA, PE, PP, PS, ABS, and high-temperature PC polymers. Featuring PLC control, automatic specimen cutting, and a 5-inch TFT touchscreen display, the device supports both manual and automated test protocols. Temperature control spans from ambient conditions to 400°C with ±0.2°C accuracy and 0.1°C resolution. The integrated thermal printer enables direct result documentation, while USB connectivity permits data transfer to external computers for advanced analysis and archiving.

Technical Specifications

Temperature Range Room temperature to 400°C
Temperature Display Resolution 0.1°C
Temperature Accuracy Rating ±0.2°C
Measuring Range 0 to 30 mm
Linear Measurement Accuracy ±0.05 mm
Instrument Measurement Precision ±10%
Barrel Diameter 9.55 ± 0.05 mm
Load Standard Weight 2.16 kg
Display Type 5-inch TFT touchscreen
Control System PLC-based automation
Data Interface USB connectivity to PC
Specimen Cutting Automatic with digital encoder

Applications

  • Quality control testing of polyamide (PA) resins
  • Melt flow characterization of polyethylene (PE) materials
  • Processing behavior assessment of polypropylene (PP) compounds
  • Rheological evaluation of polystyrene (PS) polymers
  • Performance testing of acrylonitrile-butadiene-styrene (ABS) plastics
  • High-temperature polymer analysis including polycarbonate (PC)
  • Incoming material verification and batch acceptance testing
  • Raw material supplier qualification and process validation
  • Research and development of thermoplastic formulations
  • Polymer processing parameter optimization

Frequently Asked Questions

What standards does this MFI device conform to?
The instrument is fully compliant with ISO 1133, ASTM D1238, GB 3682, ASTM D3364, DIN 53735, UNI 640, and JJGB 78-94 testing standards.
Which thermoplastic materials can be tested?
The device can accurately measure MFR/MVR for PA, PE, PP, PS, ABS, and high-temperature PC polymers up to 400°C.
What is the temperature control accuracy?
The instrument provides ±0.2°C accuracy with 0.1°C resolution, ensuring precise thermal management throughout the test protocol.
Does the device support automated testing?
Yes, the PLC-controlled system with automatic specimen cutting enables fully automated test sequences with touchscreen programming.
How are test results documented?
Results can be printed directly via the integrated thermal printer or exported to a computer via USB interface for data analysis and archival.
What is the measurement precision of the device?
The instrument achieves ±10% measurement precision with ±0.05 mm linear accuracy across the 0 to 30 mm measuring range.
Is a maintenance kit included?
Yes, the package includes a cleaning and maintenance kit for routine care and optimal operational performance.
Can this device be integrated with laboratory information systems?
Yes, USB connectivity enables seamless data transfer to personal computers for integration with laboratory management software and databases.
