Işık Şiddeti Ölçer CEM Instruments DT86

Stoklu siparişleriniz aynı gün kargoda!

Light Intensity Meter CEM Instruments DT86

Fiyat Sorunuz

Portable handheld illuminance meter with LUX and footcandle measurement capabilities

  • Compact, pocket-sized design with lightweight construction for field portability
  • 3-1/2 digit LCD display with LUX, Fc, LOW BAT, and MAX indicators
  • Dual-unit measurement: Footcandles (Fc) or Lux illuminance readings
  • Four-range measurement from 0 to 40,000 Lux/Fc with 0.1 Lux/Fc resolution
  • Automatic range selection for streamlined operation
  • Maximum hold function for peak illuminance capture
  • Light-sensitive backlit LCD display for low-light environments
  • Auto power-off feature for extended battery life
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

The CEM Instruments DT86 is a professional-grade light intensity meter designed for accurate measurement of illumination levels in both LUX and footcandle (Fc) units. This compact, field-portable instrument features a 3-1/2 digit LCD display with automatic range selection, making it ideal for HVAC technicians, lighting professionals, and environmental monitoring specialists. With measurement ranges up to 40,000 LUX and advanced data-holding capabilities, the DT86 delivers precise light level assessments across diverse industrial and commercial applications.

Technical Specifications

Measurement Range (Lux) 0.1 Lux to 40,000 Lux
Measurement Range (Fc) 0.01 Fc to 40,000 Fc
Resolution 0.1 Lux / 0.01 Fc
Accuracy ±5% rdg ±10 dgts
Sampling Rate 1.5 readings/second
Power Source Alkaline battery
Voltage 9V
Dimensions 127×53×33 mm

Applications

  • Indoor and outdoor illuminance level assessment
  • HVAC and lighting system commissioning verification
  • Workplace lighting compliance evaluation
  • Photography and cinematography light metering
  • Museum and gallery lighting optimization
  • Agricultural grow light monitoring
  • Building inspection and energy audits
  • LED lighting performance validation

Frequently Asked Questions

What is the difference between Lux and Footcandle measurements?
Lux (lx) is the metric unit of illuminance (lumens per square meter), while footcandle (Fc) is the imperial equivalent (lumens per square foot). The DT86 measures both units, with 1 footcandle approximately equaling 10.764 lux.
Does the DT86 include a data-holding feature?
Yes, the instrument includes a Maximum Hold function that captures and displays the highest illuminance reading, useful for documenting peak lighting conditions.
What type of battery does this meter require?
The DT86 requires a single 9V alkaline battery. The auto power-off feature helps maximize battery lifespan between replacements.
Can this meter measure both indoor and outdoor lighting?
Yes, the DT86's wide measurement range (0 to 40,000 Lux/Fc) makes it suitable for assessing illuminance levels in both indoor and outdoor environments.
How often does the meter take readings?
The sampling rate is 1.5 readings per second, providing real-time illuminance data updates during measurement.

İlginizi çekebilir

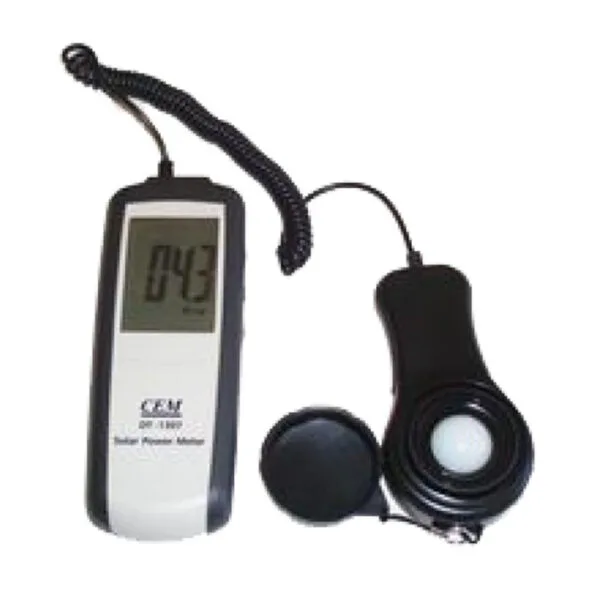

Işık Şiddeti Ölçer CEM Instruments DT1307
