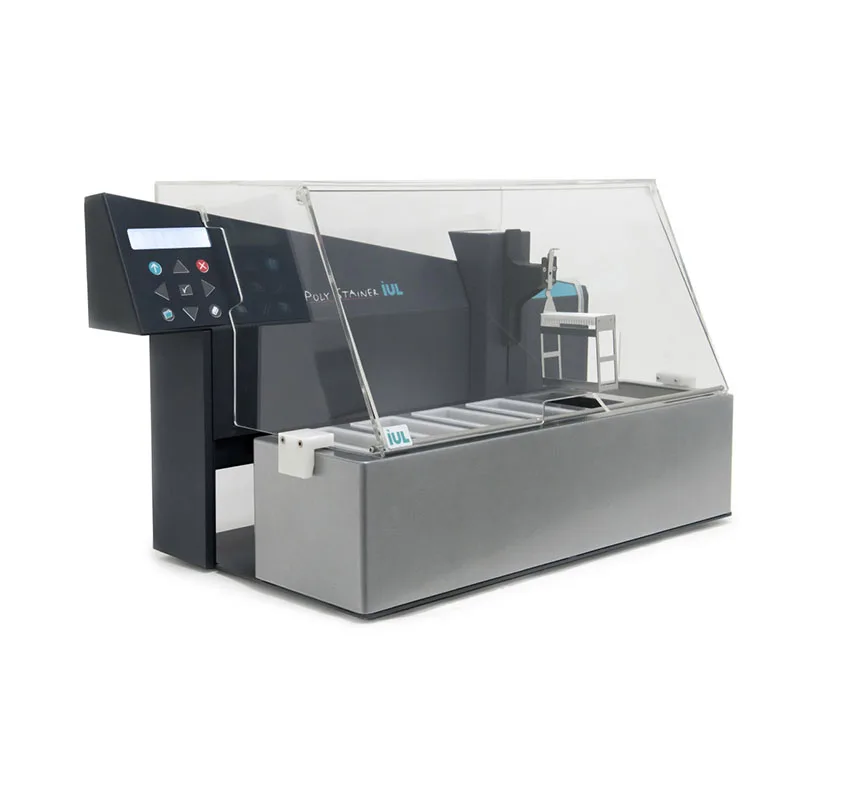

IUL PolyStainer Automatic Slide Staining System - Image 2

Stoklu siparişleriniz aynı gün kargoda!

IUL PolyStainer Automatic Slide Staining System

Fiyat Sorunuz

Automatic slide staining system for histology and microbiology laboratories. Offers 20 slides per basket capacity, one-touch operation, and programmable staining protocols.

20 slides per basket capacity, 4 reagent wells + 1 rinsing well
One-touch walkaway operation - entire procedure executes automatically
Heated/unheated fan drying; heating 12-15°C above ambient temperature
10 programs with 10 steps per program memory
Staining chamber separated from electronic/mechanical assembly design for enhanced durability
Stainless steel AISI 304 basket/basket holder, RS232 optional output

Compare

Add to wishlist

Kargolama ve Teslimat

Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

Garanti 2 yıl

Daha fazla detay

14 Günlük ücretsiz iade

Daha fazla detay

PolyStainer automates standard slide staining procedures, relieving laboratory personnel from labor-intensive manual staining operations. Designed for general microbiology and histology laboratories, the system provides a practical solution for teams seeking to reduce staining workload.

Up to 20 microscope slides are loaded per basket; a robotic arm submerges and agitates slides in four replaceable reagent wells. After each basket is rinsed, a fifth, replaceable rinse water well ensures water renewal and prevents cross-contamination. In the final stage, slides can be dried using a heated or unheated fan.

The staining chamber is physically separated from the electronic and mechanical assemblies; this design prevents high-oxidative reagents from contacting electronic/mechanical components, enhancing durability. All staining procedures are initiated by a single touch, enabling walkaway operation without requiring personnel to remain at the instrument.

Stainless steel (AISI 304) baskets and basket holders, combined with polyethylene reagent containers, provide chemical resistance. With 10 programs and 10 steps per program, different staining protocols can be saved and reused.

Technical Specifications

Manufacturer	IUL Instruments
Slides/Basket	20 slides per basket
Basket Lift Motor	2.6 W 12V / 141:1 / encoder
Transport Motion Motor	1.65W 12V / 28:1 / encoder
Heater	12-15°C above ambient temperature
Heater Air Pressure	80 Pa
Air Volume	30 m³/hour
Water Control	Solenoid valve 4W 24V IP65
Water Flow Program	Continuous / automated in previous bath
Water Pressure	2bar / 6bar (with 3 different manifolds)
Optional Output	RS232
Dimensions (W×H×D)	70×40×34 cm
Weight	23 kg
Reagent Containers	Polyethylene
Basket/Basket Holder	Stainless Steel AISI 304
Additional Connections	2 × USB Host ports
Program Memory	10 programs, 10 steps per program
Cat. No.	90005100
