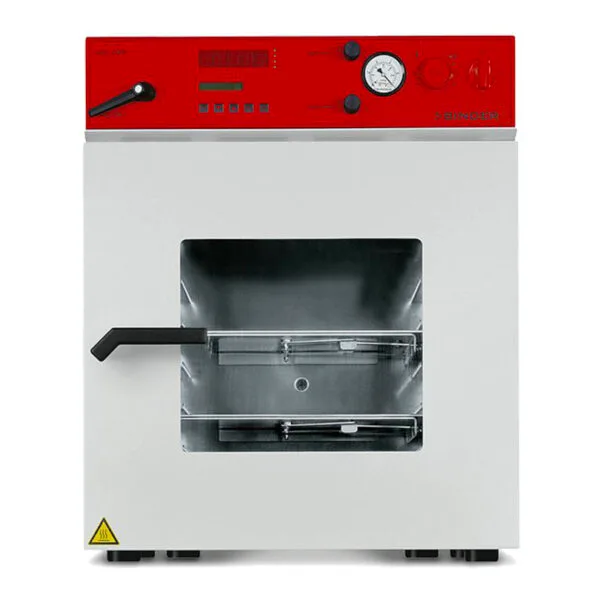

Binder VDL 53 Vacuum Oven (Drying Cabinet) – 53 Liters

Fiyat Sorunuz

The BINDER VDL 53 is a 53-liter vacuum drying cabinet designed with ATEX-compliant internal chamber for safe vacuum drying of flammable solvents. Used in laboratory and R&D units for solvent drying processes.

ATEX-compliant internal chamber with safe design against flammable solvent vapors
Temperature range: ambient +15°C … +200°C
0.01 mbar final vacuum, 0.01 bar/hour leak rate
Independent temperature safety device per DIN 12880 Class 2
53 L internal volume, 45 kg maximum permitted load
RS 422 interface with time-interval-based programming

Compare

Add to wishlist

Kargolama ve Teslimat

Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

Garanti 2 yıl

Daha fazla detay

14 Günlük ücretsiz iade

Daha fazla detay

The BINDER VDL 53 is a 53-liter vacuum oven/drying cabinet engineered for safe vacuum drying of flammable organic solvents. Its ATEX-compliant chamber design (Ex II -/3G c IIB T3-T1 Gc X) and flame protection gasket provide additional safety for laboratories working with solvent-vapor-containing samples.

Operating from ambient temperature to +200°C, the unit features 0.01 mbar final vacuum and 0.01 bar/hour low leak rate, designed for precision vacuum drying processes. The independent temperature safety device per DIN 12880 Class 2, pressure control during heating (<125 mbar), and inert gas connection provide extra safety layers, particularly for critical processes such as solvent drying.

With 53-liter internal volume, single door, and standard 2 shelves (maximum 5), it is suitable for medium-scale sample series. Data logging and time-interval-based programming are available via RS 422 computer interface.

Technical Specifications

Internal Volume	53 L
Net Weight (Empty)	95 kg
Permitted Load	45 kg
Load per Shelf	20 kg
Number of Doors	1
Internal Dimensions (W x H x D)	400 x 400 x 340 mm
External Dimensions (W x H x D)	635 x 775 x 550 mm
Wall Clearance (Rear)	100 mm
Wall Clearance (Side)	135 mm
Number of Shelves (Standard/Maximum)	2 / 5
Temperature Range	Ambient +15°C … +200°C
Temperature Deviation (at 100°C)	± 2 K
Temperature Fluctuation	± 0.1 K
Permitted Final Vacuum	0.01 mbar
Leak Rate	0.01 bar/hour
Heating Time (to 100°C)	80 minutes
Electrical Input	230 V, 1 phase
Nominal Power	1.2 kW
Unit Fuse	10 A
Vacuum Connection	DN 16
Measurement Connection	DN 16
Inert Gas Connection	3/8"
Compressed Air Connection	8 mm
