Otomatik besi yeri dolum ünitesi Awel International MD320

Stoklu siparişleriniz aynı gün kargoda!

Automatic Media Filling Unit

Fiyat Sorunuz

High-capacity automated petri dish filling system. Load plates and monitor filling of 440 petri dishes (15ml) within 30 minutes.

  • Fills 440 petri dishes (15ml) within 30 minutes
  • Patented Masterflex™ peristaltic pump for uniform media distribution
  • Integrated Peltier cooling reduces condensation and solidification time
  • UV lamp contamination prevention during media dispensing
  • GLP-GMP compliant with 25-character (2-line) print capability
  • Compact footprint at 0.6m width
  • Processing speed: ±750 plates/hour
  • Ergonomic design with quick-access loading system
Compare
Add to wishlist

Kargolama ve Teslimat

  • Kurye Teslimatı

Kuryemiz belirtilen adrese teslimat yapacaktır.

2-3 Gün

Ü.A. Kargo

  • Aras Kargo Teslimatı

Aras Kargo kuryesi belirtilen adrese teslimat yapacaktır.

1-3 Gün

Ücretsiz Kargo

  • Garanti 2 yıl

Daha fazla detay

  • 14 Günlük ücretsiz iade

Daha fazla detay

Professional-grade automatic media filling unit designed for high-throughput laboratory operations. Features patented Masterflex™ peristaltic pump technology, integrated Peltier cooling system, and UV contamination prevention. Capable of filling up to 320 plastic petri dishes with precise volume control (1-30ml per dish). Ideal for microbiology, cell culture, and pharmaceutical research laboratories requiring GLP-GMP compliance and traceability.

Technical Specifications

Capacity Up to 320 plastic petri dishes
Processing Speed ±750 dishes/hour (15ml per dish)
Dispensing Volume 1 to 30ml per petri dish (manual mode: 1 to 100ml)
Pump System Easy-load peristaltic pump with series cooling
Storage Capacity Up to 40 programs
Operating Languages English, French, Spanish, German
Control Interface Keyboard programming with LCD display
Output Connectivity RS232
Power Supply 230V ±10%, 50 Hz (standard); convertible to 110V ±10%, 50-60 Hz
Dimensions (Packaged) 82 x 80 x 112 cm
Weight (Packaged) 68 kg
Weight (Unpackaged) 45 kg
Width 0.6m (compact)
Print Capability 25-character (2-line) on petri dishes (laser printer optional)

Applications

  • Microbiology and bacterial culture screening
  • Cell culture plate preparation
  • Pharmaceutical quality control testing
  • Research laboratory high-throughput workflows
  • Clinical diagnostic media preparation
  • GLP-GMP compliant production environments
  • Agar and growth medium dispensing
  • Contamination prevention in sterile environments

Frequently Asked Questions

What is the maximum number of dishes this unit can fill per cycle?
The unit can accommodate up to 320 plastic petri dishes per cycle, with processing capability of approximately 750 dishes per hour at 15ml per dish.
How does the Peltier cooling system work?
The integrated Peltier cooling element reduces condensation and solidification time by actively cooling the media during dispensing, improving quality and reducing processing time.
Is this equipment GLP-GMP compliant?
Yes. The unit includes built-in traceability features with 25-character (2-line) printing capability on petri dishes and optional laser printer integration for full GLP-GMP documentation requirements.
Can the unit handle different petri dish sizes?
Yes. The unit is configurable for dispensing volumes from 1ml to 30ml per petri dish, with manual mode supporting 1-100ml for tubes and bottles.
How is contamination prevented during filling?
The unit features UV lamp irradiation during media dispensing, Plexiglas protective cover, and the Masterflex™ peristaltic pump system to prevent aerobic contamination.
What happens if an inverted dish is detected?
The MD 320 automatically detects inverted dishes and skips filling without interrupting the cycle, ensuring quality control.
Is the unit easy to clean and maintain?
Yes. The unit features quick-removal housing and transfer disk for rapid cleaning and maintenance. The peristaltic pump head accommodates different tubing sizes for manual filling during servicing.
What programming flexibility is available?
The unit supports simple keyboard programming with storage for up to 40 different programs. It operates in multiple languages (English, French, Spanish, German) with cycle counting and volume tracking displayed on screen.

İlginizi çekebilir

Otomatik besi yeri dolum ünitesi Alliance Bio Expertise DISTRIWEL
Compare
Quick view
Add to wishlist
Read more

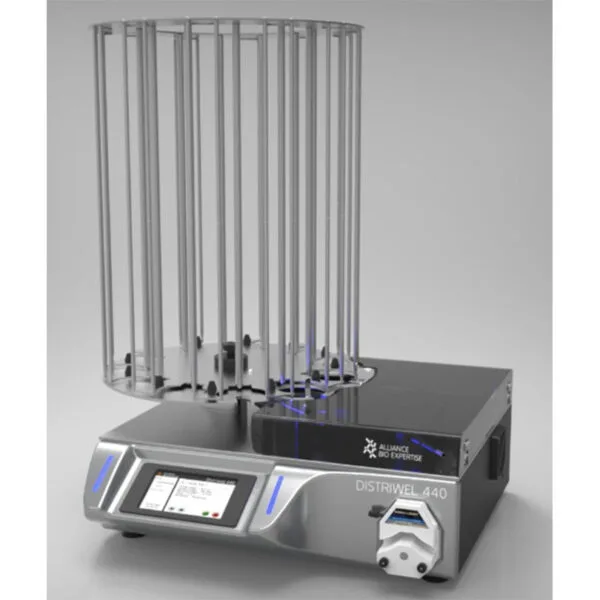

Alliance Bio Expertise DISTRIWEL 440 – Automatic Culture Media Filling Unit

Fiyat Sorunuz
Otomatik XYZ Dolum Sistemi Alliance Bio Expertise POLYWEL 3D
Compare
Quick view
Add to wishlist
Read more

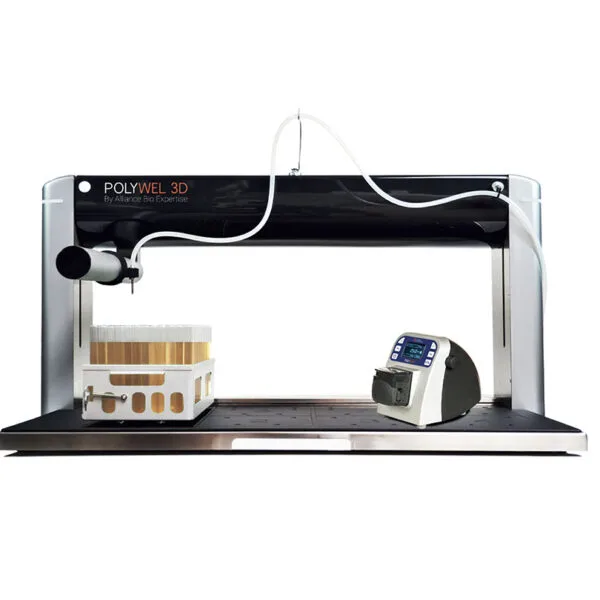

Alliance Bio Expertise POLYWEL 3D Automatic XYZ Filling System

Fiyat Sorunuz
Spiral inokülasyon Cihazı IUL Eddy Jet 2 - Spiral Plater
Compare
Quick view
Add to wishlist
Read more

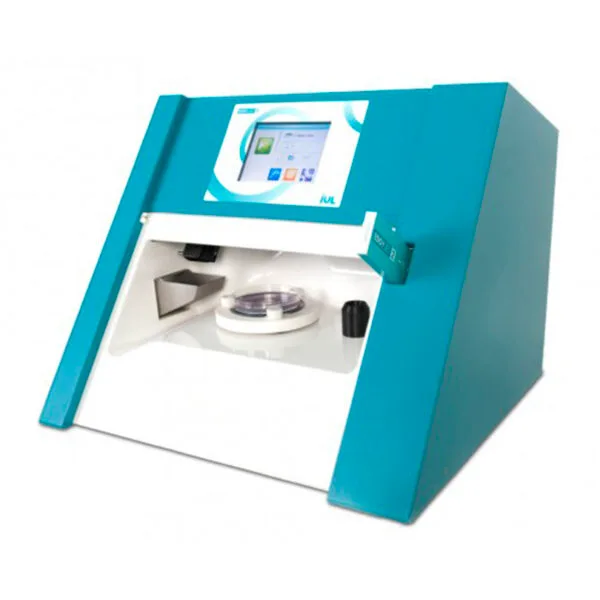

Eddy Jet 2 – Automated Microbial Plate Streaker

Fiyat Sorunuz
Çok Fonksiyonlu Kompakt Peristaltik Pompa Alliance Bio Expertise DOSYWEL
Compare
Quick view
Add to wishlist
Read more

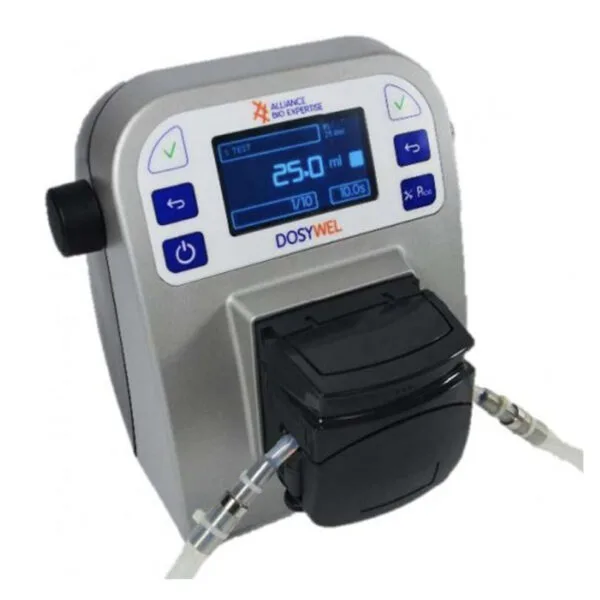

Multi-Function Compact Peristaltic Pump Alliance Bio Expertise DOSYWEL

Fiyat Sorunuz
Spiral Ekim Sistemi Alliance Bio Expertise WASPTOUCH
Compare
Quick view
Add to wishlist
Read more

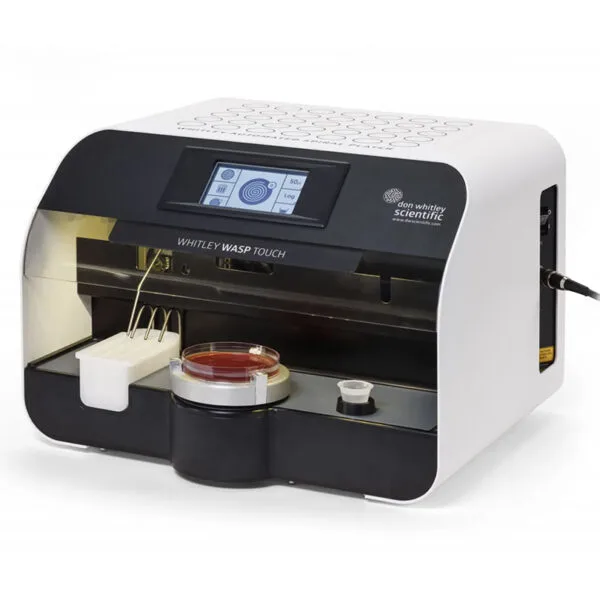

Spiral Inoculation System Alliance Bio Expertise WASPTOUCH
